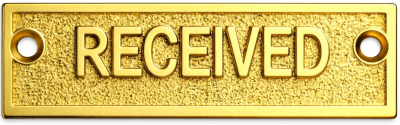

Upper Custom Die Plate

Example:

     RECEIVED
2024 DEC20 PM420
     CALIFORNIA
DEPT OF REVENUE

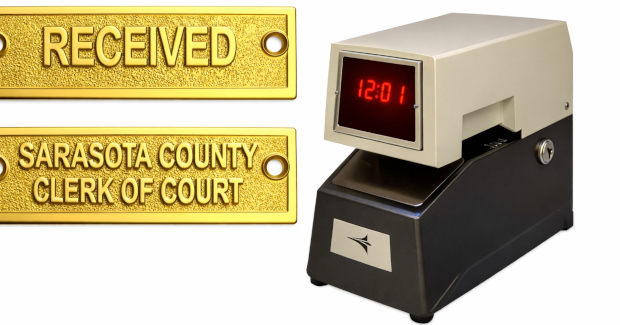

Rapidprint, Acroprint, Simplex, Widmer
Up to 24 Characters per line, 2 line maximum.
You CAN order three (there is an upcharge) but it's always a nightmare making them print.
It prints better, and less loud, if you keep each plate to 2 lines or less.

How to install new die plates in an automatic date and time stamp

• New die plates need to be adjusted.  They always need to be adjusted.
• To do this:  Back the plate screws out two turns.
• Cut a piece of paper (use someones business card, that's the right thickness) just narrow enough to fit behind the plate, between the screws.
• Slide it behind the plate.
• Be careful not to slide it so far forward that it touches the print wheels.
• Tighten the screws and test.
• You will probably have to add or delete more paper, moving it to the center,
  left, and/or right as needed to make it print better.
• Adjusting the plates is both an art and a science.
• Order the plates with a new machine or service, and we will do it for you.
