Amano CP5000 Non-Totaling, Top-Loading Time Clock (CP5000-A341)
The Amano CP5000 is a rugged, fully automatic non-totaling punch clock designed for clear, audit-friendly time cards—without software, networking, or barcodes. It uses an internal optical alignment system (mark-sensing) to self-align each punch and print the next line sequentially, helping prevent overprinting and messy records.
Key benefits
- Self-aligning / automatic card feed: Employees drop the card in; the CP5000 feeds, prints, and ejects.
- Unlimited employees: Works for small teams or large shops; also useful for job costing workflows.
- Flexible pay periods: Daily, weekly, bi-weekly, semi-monthly, and monthly.
- Automatic DST adjustment: Daylight Saving Time can be enabled or disabled.
- Program retention: Internal backup helps retain settings during outages and storage.
- Two-color printing: Use red zones to highlight late arrivals or early outs (example: 8:07–8:25 AM).
Time card performance
The CP5000 prints a consistent date/time line format (2-digit year, month, day, then time) and supports standard hours/minutes or military time with tenths/hundredths options. Depending on the card style, each side can hold multiple punches—many users get about a week of punches per card side in typical 4-punch-per-day schedules.
Specs & installation
- Power: 110VAC, 50/60 Hz
- Consumption: ~6W idle, up to ~60W printing
- Dimensions: 12.3" H × 10.2" W × 6.1" D
- Operating range: 32–113°F, 10–90% humidity (indoor use)
- Mounting: Includes metal wall-mount bracket (also works tabletop)
Built-in alerts & external bell support
- Internal buzzer: Low-volume alerts for breaks
- Signal relay: Supports external bells/buzzers (external power supply required)
Recommended supplies & accessories
- CP5000 two-color ribbon
- C3000 / C3000-2 compatible time cards
- Optional Full Power Reserve battery (for continued operation during outages)
- Surge protector (recommended)
- Time card rack (12-slot / 25-slot)
Part Number: CP5000-A341 | UPC: 094717435651

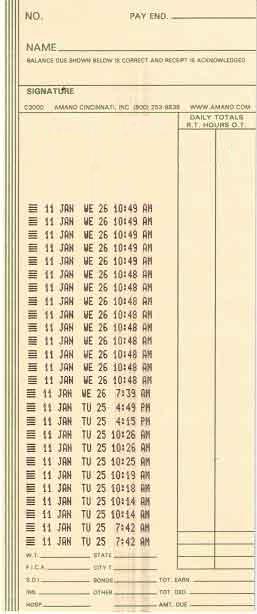

Amano CP5000 Time Card
Automatically aligns the card for the employee.
Prints up to 26 lines per side.
Cards: 8.25“ High, 3.5“ Wide
4 IN/OUT each day for 6 days of punches.
CLICK HERE TO DOWNLOAD THE OWNERS MANUAL
