Lathem Time Clock Motor (Mechanical Punch Clocks)

A dependable replacement motor for classic Lathem metal-cased time recorders, backed by a two-year replacement guarantee.

Description

This page answers a common buyer question: what motor fixes a Lathem mechanical punch clock that stops, drifts, or runs rough? This Lathem Time Clock Motor is a direct-fit replacement for many legacy, metal-case Lathem mechanical time recorders. It is commonly used to restore smooth, consistent operation in clocks that have begun to stall, lose time under load, or emit a buzzing or grinding sound.

Facilities continue to rely on these heavy-duty metal-case machines because of their durability and simple mechanics. Replacing a worn motor is often the most effective way to extend the service life of a proven clock without replacing the entire unit.

Employee Time Clocks has supported mechanical punch clocks for decades, supplying correct repair parts that keep legacy equipment running accurately in shops, plants, schools, and maintenance departments.

Compatibility / Usage / Key Features

• Designed for mechanical Lathem punch clocks with metal cases
• Common symptoms addressed:
  • Clock stops intermittently
  • Time drift or loss under load
  • Rough operation or buzzing noise
• Best suited for:
  • Shops maintaining legacy punch clocks
  • Facilities needing a quick repair part
  • Maintenance teams performing in-house service
• 2-Year Replacement Guarantee
• Status: In Stock

Compatibility examples: Commonly referenced for mechanical Lathem models such as 1221, 2026, 2121 / 2126, 4001, 4026, and many similar metal-cased recorders. If your clock is metal-case and the motor appearance matches, it is typically the correct fit.

Install Overview

• Unplug the clock
• Open the cover and remove the movement retaining clip
• Lift the movement to access the motor
• Loosen motor screws, disconnect wires, and replace the motor/bracket
• Reassemble in reverse order and test punch alignment

Tip: While the clock is open, it’s a good time to replace the ribbon and inspect other wear components.

UPC: 696735751203

Related Items

• More Time Clock Motors
• Ribbons
• Time Cards

FAQ

How do I know if the motor is the problem?
Intermittent stopping, time drift, or rough buzzing operation are common indicators of a failing motor in mechanical clocks.

Look at pictures online, click here to see how it's done:
           <<--------:::Click here

Click here, see our shop!

Lathem Time Clock Motor w/ 2-Year Guarantee | Employee Time Clocks

Lathem Time Clock Motor (Mechanical Punch Clocks)

A dependable replacement motor for many classic Lathem metal-cased time recorders—supported with install guidance and a two-year replacement guarantee.

Why this one?

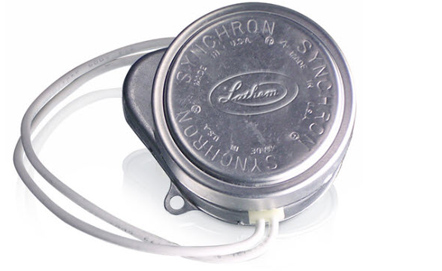

Lathem's encapsulated coils are covered with DuPont's ZYTEL 70G33L resin, a glass reinforced nylon. By using encapsulated coil motors, the Lathem time recorders have a superior resistance to moisture (15% greater dielectric strength*) and power surges. The encapsulation process also produces stronger lead wires which reduces the chances that the wires will pull out of the motor (double the pull-out strength*). The compact Lathem motors are permanently lubricated and require no maintenance during their lifetime. * Compared to standard tape wrapped coils.

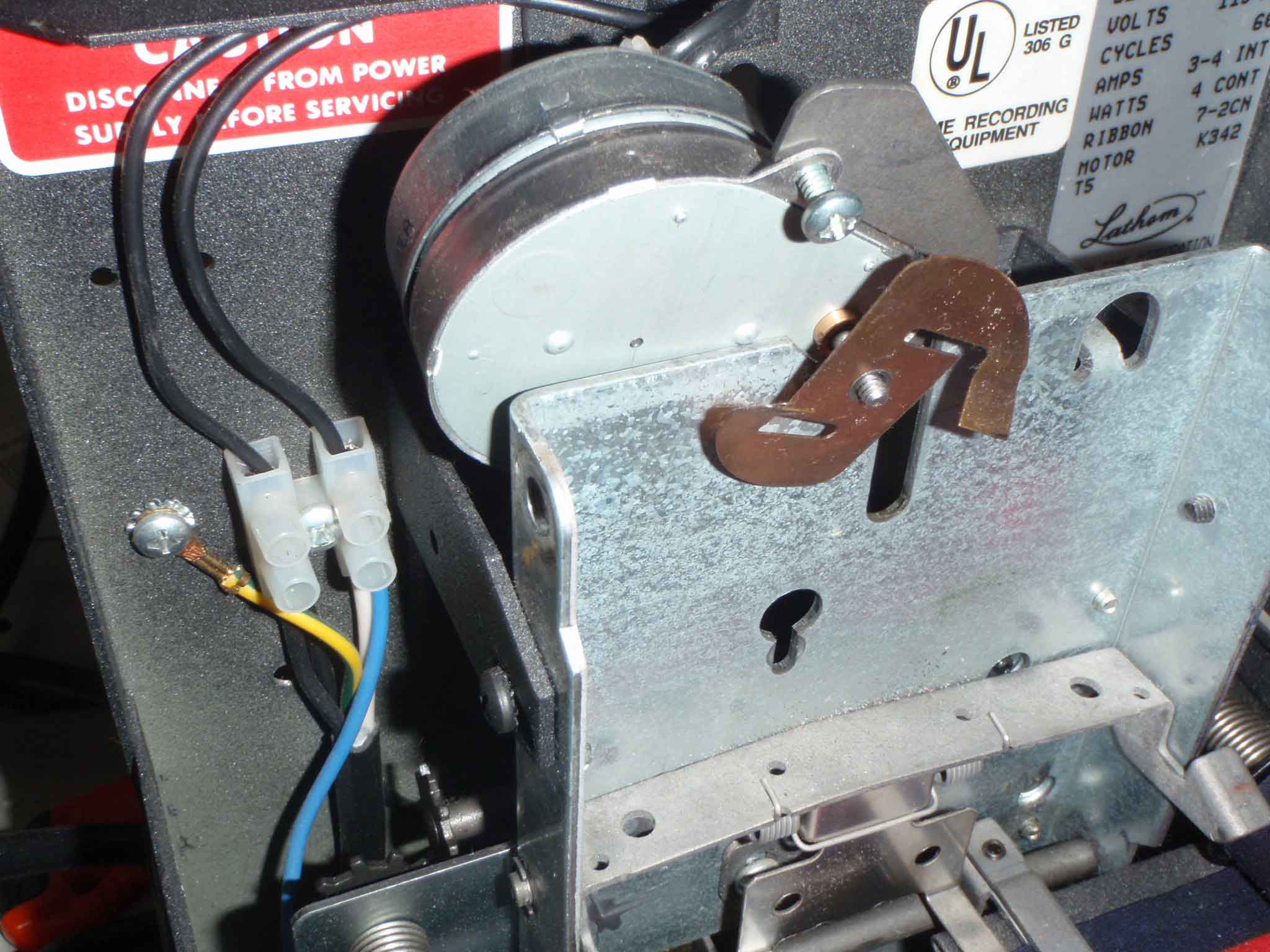

This Lathem Motor fits these machines - and any similar looking Lathem clock.



Lathem time clock parts - the Lathem motor

• Fits all mechanical Lathem time card clocks, including:
• 2221, 2000 series, 2100 series, 2200 series, 3000 series,
• 4000 series, 4100 series, 4200, 8000

Model Examples:
1221,  8000,  8001,  8005,  8025,   8026
2021,  2022,  2023,  2024,  2025,   2026
2101,  2102,  2103,  2104,  2105,   2106
2121,  2122,  2123,  2124,  2125,   2126
2201,  2202,  2203,  2204,  2205,   2206
4001,  4002,  4003,  4004,  4005,   4006
4021,  4026,  4201,  4226,    and so-on...
                  Look at yours.  If it looks even remotely similar, it will fit.

When replacing the motor, you should also replace the clutch spring.
The clutch spring is press-mounted to the center shaft (not welded, that would never fail).
This bond breaks. As it slips under pressure on the shaft, the clock loses time.
We always change both parts at the same time our shop.

You found this article because you probably asked this question:  Where do I find Lathem time clock parts?
