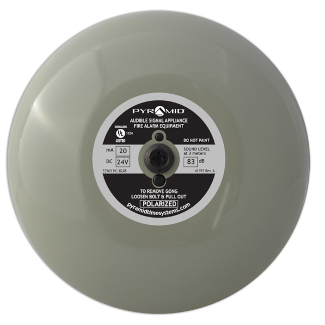

8” Low-Voltage Shop, School & Factory Bell
Durable low-voltage industrial bell designed for Pyramid signaling systems.
Description
This 8-inch shop, school, and factory bell is designed for use with Pyramid low-voltage bell systems to signal class changes, shift starts, breaks, lunches, and end-of-day events. It provides a clear mechanical ring that is well suited for institutional and industrial environments.
The bell operates on 24VDC low voltage, which allows simple installation without electrical conduit in most applications, subject to local code. Low-voltage operation makes it easy to expand bell coverage without the cost or complexity of high-voltage wiring.
Sound output is rated between 92 and 102 decibels at 10 feet, depending on installation conditions. Although larger in diameter, the 8-inch bell typically produces a slightly softer tone than the 6-inch model, which some facilities prefer for broader coverage without excessive sharpness.
Typical Applications
- K-12 schools
- Manufacturing plants
- Distribution centers
- Institutional facilities
Electrical & Performance Specifications
| Operating Voltage |
24VDC (Low Voltage) |
| Sound Output |
92–102 dB at 10 feet |
| Bell Diameter |
8 Inches |
| Wiring |
Low-voltage wiring, no conduit typically required |
System Compatibility
This bell is commonly powered by Pyramid control equipment with 24VDC outputs, including the Pyramid 5300, Pyramid 7000, and Pyramid 5024 bell controllers.
Product Identification
| Part Number |
41392 |
| UPC |
044942793620 |
Actually, the 6" bell is louder.
This has been going on for years: People keep asking "How loud are your
bells?" Unfortunately, it's like describing a dinner at a restaurant. It depends on the environment. Is it an empty
room like a gymnasium? Does it have lots of rooms, or lots of
background noise like a woodworking shop? Is this a warehouse with lots of rows of shelving and boxes of fabric?
Bells
and buzzers all seem to max out at 102db. 102db is very loud.
110db is
extremely loud, check out the YouTube video below.
In our
experience, installing 2 to 3 bells or
buzzers is much more effective than just one. Put one by the timer,
then run wire out the another, 50 to 100' away. It won't be louder, it
will just be more likely to be heard above all the background noise.
So, yours truly did some research recently (2016), this is interesting:Using an Android phone decibel app, this is what we found:**A bedroom at night in the country, windows closed: 28 - 32 db
**A bedroom at night in the city with the windows closed: 42- 46 db
**Office environment, people chattering: 62db
**American Airlines 737 inside just behind the wing during takeoff 86db
**Same jet, landing with the reverse thrusters on: 88db
That ROAR you hear..
**Same jet, cruising for 3 hours, it's 82 to 86db. That's partially why flying is tiring.
Shop buzzer's: 102db (Edwards, the ones we sell) Other brands "hum" at 82 to 86.
Our bells test out at 98 to 103db depending on voltage
It
seems that no one offers anything louder than 103db, unless it
goes on a train, ocean liner, or fog horn. In some cases loudspeakers
are used on farms; we don't have them, but our equipment will ring
them. This is 110db, a train horn on an obnoxious person's pickup
truck. In a working environment, this would clearly cause accidents.
https://www.youtube.com/watch?v=TiWNw0A1Ijg&feature=relatedMore
bells or horns does not make it louder, it just makes it more pervasive
- easier to hear through the machinery, across the rooms, over the
land.
