Amano MJR Signal Kit
Amano MJR Signal Controller


Bell control plug-in board for your Amano MJR clock. Just hook it up and add a bell. Free Technical Support. We will install it for you if you send the machine to us.


Our Price: $119.00


MJR signal kit

Accessories & Supplies:

DetailsIDProduct NameDescriptionPriceAdd To Cart
Click 88 6" 110V AC Bell 96-102dB6" 110V AC bell$99.00
Click 86 4" 110V AC Buzzer 102db4" 110V AC Indoor Buzzer$139.00
Click 578 Weatherproof Outside Buzzer4" 110V Outdoor Buzzer$199.00
Click 84 Custom Power SupplyIsolated Protective Power Supply$65.00
Click 85 4" 24V AC Buzzer 102db4" 24V AC buzzer 102db$139.00

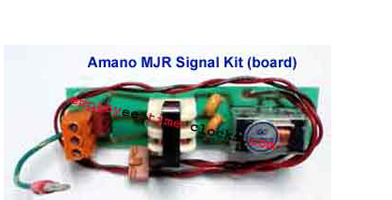

Amano MJR signal kit

  • We will install and program it for you before shipping, no charge.
  • We have loud horns and buzzers in stock
    - 110V and 24VAC, and power supplies for the 24VAC

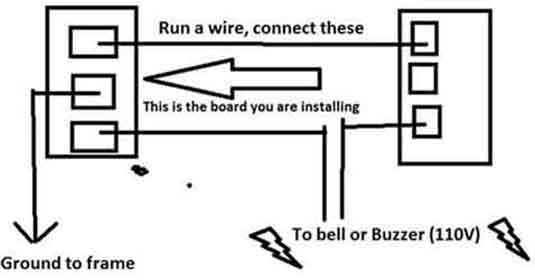

Click on the image below to see how you install this.
You can do it yourself, but it's better if we do it before it ships.



You can easily connect up to 10 loud bells, horns or buzzers, and stobe lights.

  • This is easily connected to existing bell systems
  • We are one of the very few companies that has actual hands-on experience.  We repair these machines.





How to install Amano MJR signal control kit



To program your Amano time clock bell module:
Monday  thru  Friday      Saturday
  6:55   AM                       6:55 AM  "Five Minute Warning"
  7:00  AM                        7:00
  9:30  AM                        9:30
  9:48  AM                        9:48       "Two Minute Warning"
  9:50  AM                        9:50 AM
11:30  AM
11:55  AM                       11:55 AM
12:00  PM                       12:00 PM
  1:30  PM                         1:30
  1:48  PM                         1:48
"Two Minute Warning"
  1:50  PM                         1:50
  3:25  PM                         3:25       "Five Minute Warning"
  3:30  PM                         3:30 PM
  4:25  PM
  4:30  PM

These are the steps: Note: Take Your Time! Be very careful, you will be done sooner.
If you make a mistake, hit E then "I" to save your work, then restart,
and hit "E" to step through the program to your last mistake and correct it.

Insert the #700 key, turn it to the right. The display should go blank.
Press 21 E See 020 on the left, enter 0 2 E
2 is how many seconds it will ring.

Select 1,2,3,4,5 up to 15 seconds if you like, "2 or 3" seem to work best.





Now, the number (020) above will increase, each time you hit E
021: 1 2 3 4 5 6 #        655
E
022: 1 2 3 4 5 6 #        700 E
023: 1 2 3 4 5 6 #        930 E
024: 1 2 3 4 5 6 #        948 E
025: 1 2 3 4 5 6 #        950 E
026: 1 2 3 4 5 #         1130 E
027: 1 2 3 4 5 6 #      1158 E
028: 1 2 3 4 5 6 #      1200 E

029: 1 2 3 4 5 6 #      1330 E
030: 1 2 3 4 5 6 #      1348 E
031: 1 2 3 4 5 6 #      1350 E
032: 1 2 3 4 5 6 #      1525 E
033: 1 2 3 4 5 6 #      1530 E
034: 1 2 3 4 5 #         1625 E
035: 1 2 3 4 5 #         1630 E  (then press) "I"



Regarding the "I": To end and save the program, hit the "I" at the upper left.
Now, check the time on the clock and correct it if you need to.
You are done.
