Biometric time clock w/ synchronized bells
MTX30 Bio, software and bells

Computerized time clock system, 100 employee Windows 10 software, fingerprint reader, two bells with 25' cabling and custom power supply. Everything you need to get started!

Our Price: $695.00
Biometric clock with bells

Bells or Buzzers
Select Bells, or Upgrade to Buzzers

Accessories & Supplies:

DetailsIDProduct NameDescriptionPriceAdd To Cart
Click 115 Surge ProtectorPower damages are not covered w/o surge protection$14.95
Click 88 6" 110V AC Bell 96-102dB6" 110V AC bell$99.00
Click 78 Amber Strobe Light 110VacHigh Voltage Amber Strobe Light$74.99
Click 404 50' Insulated bell wire50' Insulated bell wire$29.50
Click 405 100' Insulated bell wire100' Insulated bell wire$34.50
Click 413 250' Insulated bell wire250' Insulated bell wire$79.00
Click 408 Momentary Contact Button"Instant Ring!" Button$35.00
Click 718 Fingerprint Biometric Clock Terminal OnlyMTX-30F/A965, No Software$329.00
Click 469 Amano Technical SupportTimeGuardian Software Support$149.00


Biometric Time Clock system with 2 loud bells and 100 employee software

  • One Ethernet-ready Biometric time clock terminal, Software, Instructions, 30 days USA telephone support, and a one year guarantee.
  • Scheduled event program rings bells, controlling crowds of workers.
  • OT can include “Consecutive Day“ if you need it - California Overtime Rules
  • Optional mandatory supervisor approval of
    Overtime, early In-punch, late Out-punch, Unscheduled hours
  • Selectable Display - std time, or military and 100ths
  • Automatic lunch deduction
  • User preset holidays (and who gets paid for them)
  • Accommodates weekly, bi-weekly, semi-monthly and monthly pay periods
  • Unlimited number of departments, pay policies, schedules and holiday assignments
  • Track and report wages, tips and bonuses
  • Fast Plug and play installation wizard
  • Automatic punch updates - data polling - and time synchronization
  • Stores up to 20,000 punch registrations
  • Automatically backs up every-day, you schedule it.
  • One Year Product Guarantee, 30 days free technical support*
    *Annual support is $149.00 for base system with two user license

Click to download the Installation and Owners Manual

All Amano MTX30 time clocks can ring bells

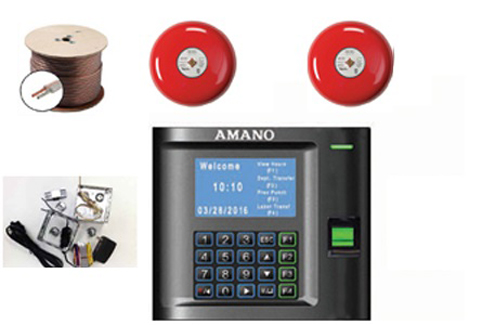

In the box:
1 Amano MTX30B biometric terminal. Ethernet and USB-drive ready
1 Wall mounting plate, power supply, instruction manual
1 Newest verision Amano TimeGuardian Windows software CD
   Which includes two administrators, 100 employees, basic scheduling,
   Departments, and bell scheduling software (which is shown on this website)
2 loud 110VAC bells.
25' insulated stranded bell signal wire

Custom  bell power supply - which we build specifically for your order.
You can add more cable - up to 500' from the clock terminal.
You can add more terminals - and run bells from those clock terminals.
Run up to 6 bells per power supply.  One bell schedule runs all the terminals.
One bell or buzzer for every additional 15,000 square ft of space, depending on ambient noise
Note:  More is always better.  Two bells are not "louder" as much as they are "persuasive".
           Think it as a light.  One lamp on the left, or two - one on the left, one on the right

        This is how you wire the connector on the back of the machine:

Set your schedule in the software, it will ring the bells and buzzers at the times and on the days that you want.

This is an image of a schedule that we built in TimeGuardian software November, 2018.

This bell timer software, which is built-in to the Amano MTX-30 system - all models, allows you to set up as many bell ringing events as you need each day.  Up to 1,440 rings per day, one for every minute, spread across seven days.  It can ring a standard schedule of events Monday - Friday, off on Saturday and Sunday, or a partial shift of different times on Saturday (and even Sunday).  The bell scheduling software is capable of ringing 7 days a week, three shifts.

In the event of long distances in large warehouses and manufacturing facilities, each MTX-30 terminal, run via Ethernet or optional WiFi, can be set to ring bells from that clock terminal, making it easier to wire.

Our systems are generally shipped as connect and play.  We build custom power supplies for each bell system.  Contact us if you have additional questions.

You can also add strobe lights that flash along with the bells.  Perhaps have light where bells are not appropriate.


Amano MTX-30 information you will not find anywhere else

Hardware:  The Proximity reader has a capacity of 2000 employees per machine.
                   40,000 punches between downloads.
                   2000 employees  But when you get above 75 people, you start to have lines.
                   Being paid to stand still - that's when you should consider adding
                   more clock terminals.
                   Employees can be assigned to multiple clock terminals.

TimeGuardian Software.  Adding additional managers:
All TimeGuardian systems come with two managers, aka two "system administrators."
When you upgrade to 5 (the first upgrade, which is a TOTAL of 5) users/administrators, you get the ability to assign unique usernames and passwords to the manager, and also assign what they can - and cannot - do.

For example, you would not want the Parts Manager to have the ability to change the punches for people in the Administrative department, or to change the pay cycle.  But you might want him to be able to correct punches for employees in the Parts department. On the other hand, the payroll manager would have access to everything, and the company President might only have access to making and reading reports.

TimeGuardian Software.  Adding additional employees:
TimeGuardian starts with 100 employees.  If you purchase + 25 employees, you then have a license for 125 ACTIVE employees.  If you purchase a 250 employee upgrade, you then have a license for 350 ACTIVE employees. Employees can be inactivated and brought back, next season.

TimeGuardian Technical Support:
If you go above 2, support increases by $50
If you go above 5, support increases by $100
If you go above 10, support increases by $250

In this industry, where a few of us have over 25 years of direct experience, the rule of thumb is this:
If you have over 75 employees, it's time to add a second time clock.  If a clock goes down, you can always have them use the other one until it's repaired or replaced.  You also save money by not having people stand in lines to punch in and out.

Amano Time Guardian Fingerprint Time Clock System with shop bells

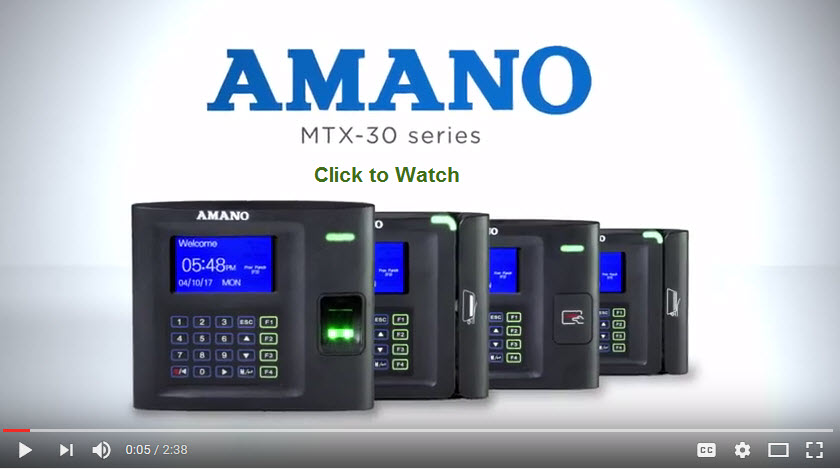

Anabi MTX30 Video.jpg

          =^^ Overview^^=                                     =^^ Setup and Operation ^^=

Amano Time Guardian is an employee time tracking system designed to minimize payroll management. This economical time clock system interfaces with most common payroll applications, including ADP, Paychex, QuickBooks, and .csv. This provides a complete turn-key solution to accurately and effectively mange your payroll. It enables you to automate the collection, calculation, and preparation of employee time records, while increasing your profits.

Features and Benefits:   IT RINGS SYNCHRONIZED BELLS

  • 100 employees, upgrades to UNLIMITED
  • Two PC network license included, upgrade to as many as you need
  • In the box:
    High capacity biometric time clock
    Ethernet connection, 6' CAT5 cable, WiFi upgrade is available.

    Custom power supply, two 98db 110V fire bells,  25' insulated signal cable
  • Automatically updates the punch records
  • Ethernet Connection, run from multiple PC's on the same local network
  • Use Multiple Clocks - punch in on one, out on another
  • Able to ring bells and buzzers - integrated work shift timer
  • No more paper time cards, it's all on your computer monitor
  • Typically reduces payroll errors, time calculations are done for you
  • Software wizards guide you through the set up
  • Capacity:  100 employees, upgradeable to Unlimited
  • Fingerprint only, PIN and fingerprint, or you can use PIN ID numbers only.
    FYI, the BEST METHOD is to use a 4 digit PIN THEN FINGERPRINT.
  • Supports weekly, bi-weekly, semi-monthly and monthly payperiods
  • Unlimited number of departments
  • Unlimited number of pay polices
  • Unlimited number of holiday assignments (assign in advance)
  • Scheduling - basic scheduling software- keep better tabs on your employees lunches, start and finish times.
  • Tracks Tips, Wages, and Bonuses
  • Synchronizes time from your computer (or network)
  • Password protected
  • Capacity:  20,000 punches between downloads
  • Manager Overtime Authorization Feature
