Pyramid Clock & Bell Package
One timer, 1 digital clock, 1 loud bell

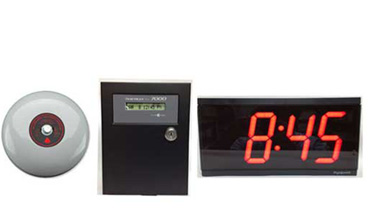

One Pyramid timer, one 6" 95db bell, one 4" Bright Red LED display clock, cables and connectors. Simple to set ring events, easy to install. (Mostly) made in USA.

Retail Price: $659.00
Our Price: $598.00


 Pyramid Time

Accessories & Supplies:

DetailsIDProduct NameDescriptionPriceAdd To Cart
Click 87 6” Low-Voltage Shop & Factory Bell6 Inch 24VDC Industrial Bell$99.00
Click 115 Surge ProtectorPower surges are not covered w/o surge protection$14.95
Click 407 Bell Wire25' Insulated bell wire$19.95
Click 404 Bell Wire50' Insulated bell wire$34.00
Click 405 Bell Wire100' Insulated bell wire$44.95
Click 413 Bell Wire250' Insulated bell wire$94.95
Click 95 Pyramid 41357G Large Digital Wall ClockSynchronized 4" 4 digit clock$209.00
Click 786 Pyramid Digital Clock with SecondsSynchronized 4" 6 digit clock with seconds$249.00
Click 232 Pyramid Dial Face ClockSynchronized 13" Child Clock$207.00
Click 93 Pyramid BCD Cable – 50 Foot ExtensionPyramid 50ft BCD Extension Cable$19.95
Click 94 Pyramid BCD Cable – 100 Foot ExtensionPyramid 41449 BCD Extension Cable$34.00
Click 82 24VDC Bell Module Signal AmplifierPyramid 5300$139.00




Pyramid Clock & Bell Package (Timer + 4" LED Clock + Loud Bell)

Description

This Pyramid clock & bell package is a bundled work shift timing system that combines one master timer, one synchronized digital wall clock, and one loud bell. It is designed to run scheduled ring events for shift changes, breaks, and lunch while also providing a single, synchronized time display that everyone can see. The timer stores the schedule internally and operates stand-alone without software or network setup.

The package includes one Pyramid 7000 series master clock/timer with power supply, one bright red LED clock with 4-inch digits (long-distance readability), and one 6-inch bell (low-voltage). A data cable links the LED clock to the master timer so the display stays synchronized. A separate bell cable connects the bell output. This is a wired, controlled system: one device keeps time, runs the schedule, and drives the clock display and signaling.

Scheduling is based on programmed “events” across a 7-day cycle (up to 300 ring times). Ring duration is adjustable per event so you can set short warnings or longer shift signals. The master timer uses a locking metal case to reduce tampering. Typical installs use this as a starter system: one clock + one bell for a primary work area, with expansion available later for additional bells or additional synchronized clocks.

Compatibility and Usage

  • Includes master timer/controller, synchronized 4" LED clock, and 6" bell
  • Up to 300 scheduled ring events over a 7-day schedule
  • Wired synchronization between master timer and digital clock display
  • Low-voltage bell wiring (no conduit required in many installs)
  • Expandable platform (commonly up to 200 LED clocks and multiple bells)
  • Used in shops, warehouses, schools, and production areas

FAQ

Is this system hard to program?
No. The timer uses a simple button-based menu to enter ring times and durations.

Can I add more bells or more clocks later?
Yes. This package is commonly expanded with additional bells and synchronized LED clocks as coverage needs change.

How loud is the included bell?
It is a 6-inch bell intended for work areas; coverage depends on background noise and building layout.

Related Items

  • Pyramid 5300 Work Shift Timer Power Booster
  • 6" Pyramid Low-Voltage Bell (Additional/Replacement)
  • Pyramid Synchronized Digital Clock with Seconds (6-Digit)
  • Pyramid Analog Synchronized Wall Clock (13")
  • Master Clock Data Cable (50 ft / 100 ft)
  • Bell Wire (25 ft / 50 ft / 100 ft / 250 ft)

Pyramid Clock-in-a-Box Bundle

  • 1  PTR7000 Master Clock with power supply
  • 1  6" 95db low voltage Pyramid bell. No conduit required.
  • 1  Bright red LED display clock with 4" tall numbers,
        readable up to 250' away
  • 1  50' data cable connects the synchronized digital clock
  • 1  Set-up instructions
  • **  Add more bells, extend out to 300' if you like)
  • 50' Pyramid master clock time data cable to connect to digital clock

Capacity:
35 Bells, 200 digital LED clocks with basic system.  This is expandable. Inexpensive  power boosters may be needed in some situations.

Features:
Easily programmable with three buttons, no software required.
Automatically compensates for daylight savings and power outages
Locking metal case prevents tampering
Returns to correct time after power is restored, timer schedule is backed up (saved) internally.
Visually synchronize with any existing time clock system, or set to your cell phone.



It's a 3 button setup, takes 5 minutes.
Just press three buttons to program it, and have your schedule written out and in front of you.
Button one:     Enter and Save
Button two:     Up (numbers and settings)
Button three:  Down (and settings)

Example:  Monday through Friday, 1/2 day on Saturday, closed on Sunday:

This has been going on for years:  People keep asking "How loud are your bells?"
Unfortunately, it's like describing a dinner at a restaurant. It depends on the environment.
Is it an empty room like a gymnasium?  Does it have lots of rooms, or lots of background noise like a woodworking shop?  Is this a warehouse with lots of rows of shelving and boxes of fabric?

Bells and buzzers all seem to max out at 102db.  102db is very loud.
110db is extremely loud, check out the YouTube video below.

In our experience, installing 2 to 3 bells or buzzers is much more effective than just one.   Put one by the timer, then run wire out the another, 50 to 100' away.  It won't be louder, it will just be more likely to be heard above all the background noise.

So, yours truly did some research recently (2016), this is interesting,
Using an Android phone decibel app, this is what we found:

**A bedroom at night in the country, windows closed:  28 - 32 db
**A bedroom at night in the city with the windows closed:  42- 46 db
**Office environment, people chattering:  62db

**American Airlines 737 inside. just behind the wing during takeoff:  86db
**Same jet, landing with the reverse thrusters on:  88db  That ROAR you hear..
**Same jet, cruising for 3 hours, it's 82 to 86db.  That's (partially) why flying is so tiring.
Shop buzzer's:  102db (Edwards, the ones we sell)
                           Other brands "hum" at 82 to 86.
Our bells test out at 98 to 103db depending on voltage

It seems that no one offers anything louder than 103db, unless it goes on a train, ocean liner, or fog horn.  In some cases loudspeakers are used on farms; we don't have them, but our equipment will ring them.  This is 110db, a train horn on an obnoxious person's pickup truck.  In a working environment, this would clearly cause accidents.
https://www.youtube.com/watch?v=TiWNw0A1Ijg&feature=related

More bells or horns does not make it louder, it just makes it more pervasive - easier to hear through the machinery, across the rooms, over conversations and running equipment like compressors, lifts, packing tape, all that.
