Plug and Play Punch Clock and Bells

Icon SP250 electronic punch time clock with bells

• Prints on any form
• Automatically updates for Daylight Savings
• Resets after power failures.
• Stamps date, time and messages on any document or form
• The SP250 can ring up to 16 different times a day, up to 7 days a week.
• Accommodates any type of time card or document with automatic or manual print
• Includes easy-to-change cartridge ribbon and security key

What it does:

• Prints standard time - prints it on the card in minutes or 100th's
• Automatically adjusts for Daylight Saving Time
• Comes back to current, correct time when power is restored
• External 10AMP mechanical relay protects the clock from overloads
• Signals beginning and end of shifts with two 6" 120VAC, 98dB bells

Display:

• Features clear, illuminated window to ensure proper employee
  time card alignment
• Offers quartz accuracy with large, easy-to-read LCD display
• Indicates type of minutes: 1/60, 1/100, 1/20 or 1/10

Modern Design:

• Mounts to wall or table
• Includes Lithium battery for accurate timekeeping
  even when power is out!

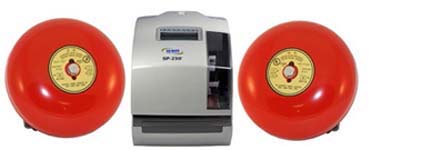

Workshift Time Clock with two bells

• One Icon SP250 time clock with signal kit pre-installed

• One Year Guarantee, lifetime technical support.

• One custom power supply
  Note:  Each power supply is custom built.

• Two loud  6" 96 - 102dB 120V bells

• 25' bell wire

• Mounting hardware, quick-start manual

• Click here to see instructions on how to set up the bell schedule on an Icon SP250

How to set up bells in an Icon SP250 punch clock and bell timer

Press the SELECT button until the diamond  symbol is under the Time Table Program on the setting panel located under the punch clock cover.

Press Set to enter your selection for day of week, or work week, based on this table:
     Day of Week
1   Monday only
2   Tuesday only
3   Wednesday only
4   Thursday only
5   Friday only
6   Saturday only
7   Sunday only

8     Monday through Friday
9     Monday through Saturday
10   Every Day

Press SET again to program the signaling scheduling dates.
Next, use the + or - buttons to choose the Action for the dates set above.
Choose option 3 to turn on the external signal

Once programming is complete, connect the power supply to the back of the clock with the wires marked CLOCK.
