Pyramid Master Clock Kit – Complete Starter System
Description

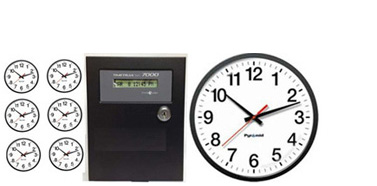

The Pyramid Master Clock Kit is a bundled synchronized timing system designed to provide a single time reference along with scheduled bell signaling from one controller. The system combines a Pyramid 7000 master clock timer, a synchronized digital wall clock, and a work shift bell into a single package. The master clock maintains time, runs the programmed schedule, and controls both the clock display and bell operation from one device.
The Pyramid 7000 operates as the timing source for the system. The synchronized digital clock receives its time signal directly from the master controller so the displayed time remains consistent without manual adjustment. Scheduled events are programmed into the master clock and can activate the bell automatically at shift start, breaks, lunch periods, or other timed events. Ring duration can be adjusted for each event, allowing short warnings or longer shift-change signals as needed.
This kit is commonly used as an entry-level synchronized system for shops, warehouses, and production environments where employees need both a visible time reference and audible scheduling. Because the system is built around the master clock platform, additional bells or synchronized clocks can be added later as coverage requirements increase. The design keeps timing, scheduling, and signaling centralized, reducing drift between devices and simplifying future expansion.
Compatibility and Usage
- Pyramid 7000 master clock timer/controller
- Includes synchronized digital wall clock
- Includes work shift bell and wiring components
- Programmable scheduled events with adjustable ring duration
- Single timing source for clocks and signaling
- Expandable with additional bells or synchronized clocks
FAQ
Is this system difficult to set up?
No. Programming is performed directly at the master clock using the built-in controls.
Can more clocks or bells be added later?
Yes. The system is designed as a starter package and can be expanded as needed.
Does the clock stay synchronized automatically?
Yes. The digital clock follows the master timer so all devices run on the same time.
Related Items
- Pyramid 7000 Master Clock Controller
- Pyramid Synchronized Digital Clock with Seconds
- Additional 6" Low Voltage Bell
- Pyramid 5300 Power Booster
- Bell Wire (25 ft / 50 ft / 100 ft / 250 ft)
Information you will not find anywhere else...

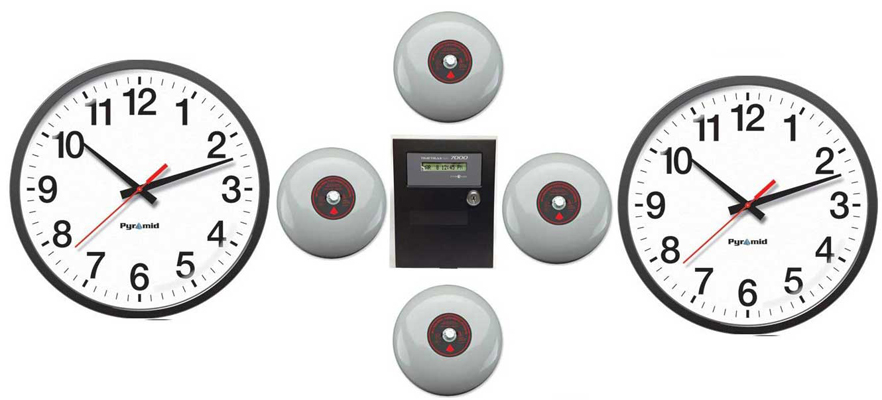

You can theoretically run 32 bells, plus 16 analog clocks, and unlimited digital clocks off of the 7000, And 32 low voltage Pyramid bells off the 5300. It's not that easy. So we did the research.
Pyramid digital clocks self-amplify the time signal and forward it to the next clock via the company's proprietory BCD cable. You must have a digital clock (or a 5300 signal amplifier) every 200' for this to work. BCD cables connect with Pyramid's again propretory "Y" connector - which we will supply to you as many as you need at no charge (nickles and dimes).
Pyramid's 13" dial face "analog" clocks do not have this signal amplifcation feature. So, every 200' or 8 clocks - whichever comes first - you need to add/purchase a PTR5300 power supply. This amplifies the time signal and allows you to extend the range.
Bells: Pyramid low voltage bells are 24VAC and draw a very small amount of amps. Somewhere in the range of 100M/a. 1000M/a is 1 Amp. When you hit 250' or so, and several bells, it will start to get quiet. We now offer a power booster that you would connect inline, adding a fresh 1 amp and 24volts DC to run additional bells as needed.
