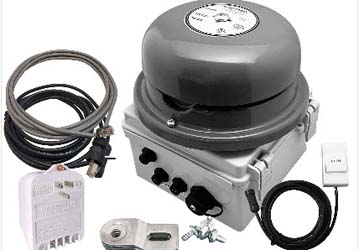

Netbell-KL Network Controlled Break Bell (01-910-00029)
Description
The Netbell-KL network break bell is a self-contained, web-scheduled bell system designed to signal shift changes, breaks, and timed alerts in noisy or larger industrial areas. It combines a network scheduling controller and a high-volume bell in one package. The unit connects to your Ethernet network, synchronizes time automatically, and runs schedules without a dedicated computer once configured.
The Netbell-KL is used when a mechanical timer is no longer accurate, when schedules change during the year, or when you want centralized control from a browser. Programming is done through a built-in web interface. Schedules are stored inside the controller and support high event capacity (commonly up to 500 scheduled events). Ring duration is adjustable per event so you can set short warning rings or longer shift-change signals.
This kit is built around an extra-loud bell intended for work areas with higher ambient noise. The bell output is typically low-voltage, with the power components provided as part of the package. The system also supports expansion: additional bells can be added for coverage, and an optional LED digital clock can be added so employees have a single visible time reference that matches the bell schedule. Optional environmental accessories (such as temperature and humidity sensing, when used) allow the unit to serve as a simple check-point device in areas where conditions matter.
Compatibility and Usage
- Network-connected bell system with browser-based scheduling
- Automatic time synchronization over the network
- High event capacity scheduling (commonly up to 500 events)
- Includes extra-loud bell for industrial coverage
- Supports adding additional bells for larger facilities
- Optional LED digital clock add-on for a synchronized time display
FAQ
Do I need a computer running all day?
No. A computer is only used to set or change schedules. The unit runs schedules internally.
Can I create different schedules for different seasons or shift patterns?
Yes. The system is used for schedule changes because updates are done through the web interface.
Can I add a second bell later?
Yes. Additional bells are commonly added when coverage needs increase.
Related Items
- Netbell Additional Bell Kit (inside or outside)
- Linortek LED Digital Wall Clock
- Network Bells In A Box (Netbell Scheduler + Bell Kit)
- Netbell-NTG Tone Generator with Scheduling
- Manual Ring Button
- Surge Protector for Controllers
Technology:
- 10M/100M RJ45 Internet interface with connection and activity LED's
- Input Power: 24VAC
- 6" High Voume Bell, 24VAC 92dBa @10', 102dBa @ 1m
- Enclosure: ABS, IP67/150mm x 150mm x 90mm (Mounting hardware supplied)
- Accessories: 3 meter power cable, 3 meter RF485 network cable, 3 meter input cable
- External bell output: Dry contact, 1-Form-A relay 110/220V 10A
- On board temperature sensor and input voltage sensor
- Working temperature from 0 - 65C (32 to 149F)
- Storage Temperature from -40 to + 125 C
Humidity from 10% to 80% non-condensing
Supported Protocols: HTTP/SMTP/SNTP
