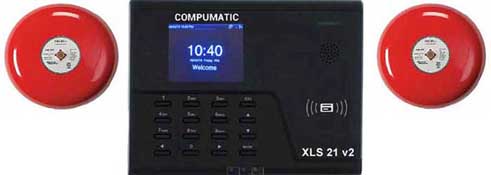

CompuTime XLS21 with Bells Kit (WiFi PIN/RFID Time Clock System)
Description
The CompuTime XLS21 with bells kit is a WiFi and network-ready PIN/RFID time clock system that also rings bells on schedule. Employees punch using a PIN, RFID badge, or RFID key fob, and punches are collected into CompuTime101 software for reporting and payroll exports. Data can be downloaded over TCP/IP (wired), WiFi, USB drive, or by USB thumb-drive for off-line operation. This is a one-time purchase system with no recurring charges.
This kit includes bell scheduling software and an onboard 30VDC bell relay. It also includes two loud bells, power supply, and cable (add more bells as needed). The standard license supports 25 employees, with upgrade options to 50, 100, 250, or Unlimited employees. Pay periods supported include weekly, bi-weekly, semi-monthly, and monthly. The software supports daily/weekly overtime, double-time, weekend overtime rules, and California 7th day overtime/double-time rules, plus punch rounding, automatic lunch deduction, revision zones, and punch corrections.
Hardware features include an integrated WiFi Ethernet connection, a wired TCP/IP port, a 2.8" color LCD menu, and internal relay capability for scheduled external signaling. Capacity is listed as 3,000 badge/PIN IDs and 50,000 records between downloads. The included bell package provides 25' twin stranded 110V AC bell wire, two 6" 110V 102dB fire bells, and an external power supply delivering low voltage to the XLS terminal with a 10 Amp DPDT mechanical relay for high-voltage bell switching. Badges and key fobs are not included.
Compatibility and Usage
- Punch methods: PIN, RFID badge, RFID key fob
- Download options: TCP/IP, WiFi, USB drive
- Onboard signal relay with bell scheduling module
- Software OS: Windows 7, 8, 10, 11
- Badge/PIN capacity: 3,000; record capacity: 50,000
- Guarantee: 1 year; technical support: 90 days included
FAQ
Does this kit include the bells and wiring?
Yes. It includes two 6" 110V 102dB fire bells and 25' of twin stranded bell wire, plus power/relay components.
Can I use WiFi or wired network?
Yes. The XLS21 supports WiFi and wired TCP/IP, and can also download by USB drive.
Are badges included?
No. RFID badges and key fobs are sold separately.
Related Items
- Surge Protector
- CompuTime RFID Badge (Q: 10)
- CompuTime RFID Keyfob (Q: 10)
- 24 Card Badge Rack
- 40 Card Badge Rack
- CompuTime 50 Employee Upgrade
- CompuTime 100 Employee Upgrade
- CompuTime 250 Employee Upgrade
- CompuTime Unlimited License Upgrade
- CompuTime Professional Upgrade
- Manual Ring Button
- 6" 110V AC Bell (Replacement)
- Bell Wire (50' / 100' / 250')
- Amber Strobe Light (110VAC)
PIN or Proximity Card Time and Attendance Clock System with WiFi and bells
Key Hardware Features:
TCP/IP: Wired port for direct connection to a router, humb, or switch.
WiFi: Integrated wireless Ethernet
USB: Thumb-drive punch downloading available for off-line, off-site operation.
Color LCD: Easy to navigate color menu.
Internal Relay: Schedule and ring bells with add-on power supply and bells or buzzers

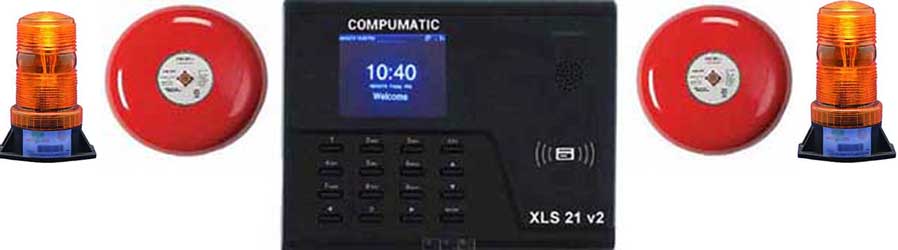

Now available with bright amber strobe lights for that visual alert.
Hardware Specifications:
Badge/PIN ID Capacity 3,000
Record Capacity: 50,000 between downloads
Bells: 110V
Communication: TCP/IP, WiFi, USB Drive
Display: 2.8 inch color LCD
Punch Method: PIN, RFID Badge, RFID Keyfob
Relay Onboard. Schedules external signal or door lock
Power: 12 vdc, 1.5A
Size: 7.3: Wide x 5.5" High x 1.75" Deep
Operating Range: 0C - 45C (32F - 113F) non-condensing humidity
Guarantee: One Year USA Guarantee.
Technical support: 90 days included, annual support contracts are available.
Operating System: Windows 7, 8, 10, 11
Bell Connect: Gray/Blk,No/Com
